Description
Expanded metal products are the most versatile you will find for almost any industrial, commercial, interior design or architectural applications.
Expanded metal is manufactured from a single sheet of metal by expansion process. In the process, the metal sheet is sheared and stretched to form a uniform diamond-patterned mesh which results in double bonds formation where the rows of strand converge at the apex of each diamond, technically called ‘knuckles’.
Material
-
Mild Steel / Powder Coated
-
Galvanized Iron
-
Aluminium
-
Stainless Steel (with thickness ≤4mm)
Uses
-
Exhibition booth decor
-
Walkway
-
Platform decking
-
Warehouse fencing
-
Ceiling panel
-
Home & living furnitures
Characteristics & Advantages
- Filtration / Enclosure (allows free flow of light, heat, sound & air)
-
Protection (will NOT unravel when cut, unlike woven wire)
-
Reinforcement (act as formidable barrier when used in security applications)
-
Fire resistant, vermin proof and provides anti-slip surface for ramps, catwalks and stair reads.
-
High strength-to-weight ratio makes it technically applicable in many engineering and ornamental applications.
-
Anti-corrosive when hot-dipped galvanized or powder-coated.
-
Decoration (available in a variety of mesh configurations and decorative patterns)
-
Good conductor to electricity, magnetic flux and heat through jointless continuity of materials.
-
Good for electromagnetic screening and driveway heating.
Specification
.png)
Notes:
MESH SIZE Actual dimensions SWD and LWD. Measured from a point to a corresponding point on the design shown.
SWD Nominal dimension Short Way of Design.
LWD Nominal dimension Long Way of Design.
THICKNESS Gauge thickness of metal expanded.
STRAND WIDTH Amount of metal fed under dies to produce one strand.
Profile & Code
(i) Security & Decorative Mesh
| Code No. | Equivalent Code | Hole Size (mm£© | Strand Size (mm) | Quantity | |
| SWD x LWD | Thick | Width | Bundle /Pcs | ||
| 4' x 8' | |||||
| BHL 2015 | 9 x 29 | 2 | 1.5 | 70 | |
| BHL 1515 | 9 x 29 | 1.5 | 1.5 | 100 | |
| BHL 1015 | 9 x 29 | 1 | 1.5 | 150 | |
| BHL 1/2x18G | 13 x 30 | 1.2 | 1..5 | 150 | |
| BHL 1520 | 16 x 38 | 1.5 | 2 | 130 | |
| BHL 1020 | 16 x 38 | 1 | 2 | 200 | |
| BHL 7502 CQ | 22 x 57 | 2.5 | 4.5 | 60 | |
| BHL 7502 | BHL 30045 | 22 x 57 | 3 | 4.5 | 60 |
| BHL 7503 CQ | 22 x 57 | 2.5 | 3 | 70 | |
| BHL 7503 | BHL 3030 | 22 x 57 | 3 | 3 | 70 |
| BHL 7504 | BHL 2028 | 22 x 57 | 2 | 2.8 | 100 |
| BHL 7506 | BHL 1528 | 22 x 57 | 1.5 | 2.8 | 130 |
| BHL 7506/6 | BHL 1528 | 22 x 57 | 1.5 | 2.8 | 90 |
| BHL 7507 | BHL 1523 | 22 x 57 | 1.5 | 2.3 | 160 |
| BHL 22-3035 | BHL 3035 | 22 x 57 | 3 | 3.5 | 60 |
| BHL 25-3035 | 25 x 61 | 3 | 3.5 | 60 | |
| BHL 1001S | BHL3045 | 25 x 76 | 3 | 4.5 | 50 |
| BHL 1001CQ | 35 x 76 | 2.5 | 4.5 | 70 | |
| BHL 1001 | BHL 3045 | 35 x 76 | 3 | 4.5 | 60 |
| BHL 1003S | BHL 30030 | 25 x 76 | 3 | 3 | 70 |
| BHL 1003CQ | 35 x 76 | 2.5 | 3 | 120 | |
| BHL 1003 | BHL 30030 | 35 x 76 | 3 | 3 | 100 |
| BHL 1006 | BHL 15030 | 35 x 76 | 1.5 | 3 | 200 |
| EYE | |||||
| BHL EYE 20 | 22 x 97 | 2 | 2.8 | 100 | |
| BHL EYE 25 | 22 x 97 | 2.5 | 3 | 100 | |
| LOM | |||||
| LOM 1063 | 16 x 75 | 1 | 63 | 60 | |
| LOM 1563 | 16 x 75 | 1.5 | 6.3 | 40 | |
| 5' x 10' | |||||
| BHL 7502 | BHL30045 | 22 x 50 | 3 | 4.5 | 40 |
| BHL 7503 | BHL3030 | 22 x 50 | 3 | 3 | 60 |
(ii) Macro & Walkway Mesh
| Code No. | Equivalent Code | Hole Size (mm£© | Strand Size (mm) | Quantity | |
| SWD x LWD | Thick | Width | Bundle /Pcs | ||
| 4' x 8' | |||||
| BHL 1000L | BHL 45060 | 35 x 76 | 4.5 | 6 | 50 |
| BHL 1000CQ | 35 x 76 | 4 | 5 | 70 | |
| BHL 1000E | 40 x 76 | 4.5 | 6 | 60 | |
| BHL 2030 | 35 x 76 | 2 | 3 | 150 | |
| BHL 1032 | BHL 3032 | 25 x 40/81 | 3 | 3 | 60 |
| BHL 1501 | BHL 4590 | 42 x 114 | 4.5 | 9 | 30 |
| BHL 1502 | BHL 4575 | 42 x 114 | 4.5 | 7.5 | 30 |
| BHL 1503 | BHL 4560 | 42 x 114 | 4.5 | 6 | 40 |
| BHL 1504 | BHL 3060 | 42 x 114 | 3 | 6 | 60 |
| BHL 1505 | BHL 3545 | 42 x 114 | 3 | 4.5 | 80 |
| BHL 1506 | BHL 3530 | 42 x 114 | 3 | 3 | 120 |
| BHL 1509 | 42 x 114 | 1.5 | 3 | 230 | |
| BHL 50075 | 25 x 76 | 5 | 7.5 | 15 | |
| BHL 50105 | 30 x 76 | 5 | 10.5 | 15 | |
| BHL 30080 | 30 x 76 | 3 | 8 | 30 | |
| BHL 50080 | 45 x 135 | 5 | 8 | 30 | |
| BHL 50110 | 45 x 135 | 5 | 11 | 20 | |
| BHL 3006 | BHL 75060 | 80 x 200 | 5 | 6 | 60 |
| BHL 3008 | BHL 74560 | 80 x 200 | 4.5 | 6 | 70 |
| BHL 3010 | BHL 74545 | 80 x 200 | 4.5 | 4.5 | 90 |
| BHL 3011 | BHL 73060 | 80 x 200 | 3 | 6 | 100 |
| BHL 3013 | BHL 73030 | 80 x 200 | 3 | 3 | 200 |
| 5' x 10' | |||||
| BHL 1000L | BHL 45060 | 35 x 76 | 4.5 | 6 | 30 |
| BHL 1000CQ | 35 x 76 | 4 | 5 | 30 | |
Ordering Procedure
Kindly enclose details below when placing order:
1. Complete code numbers (eg: BHL 7503)

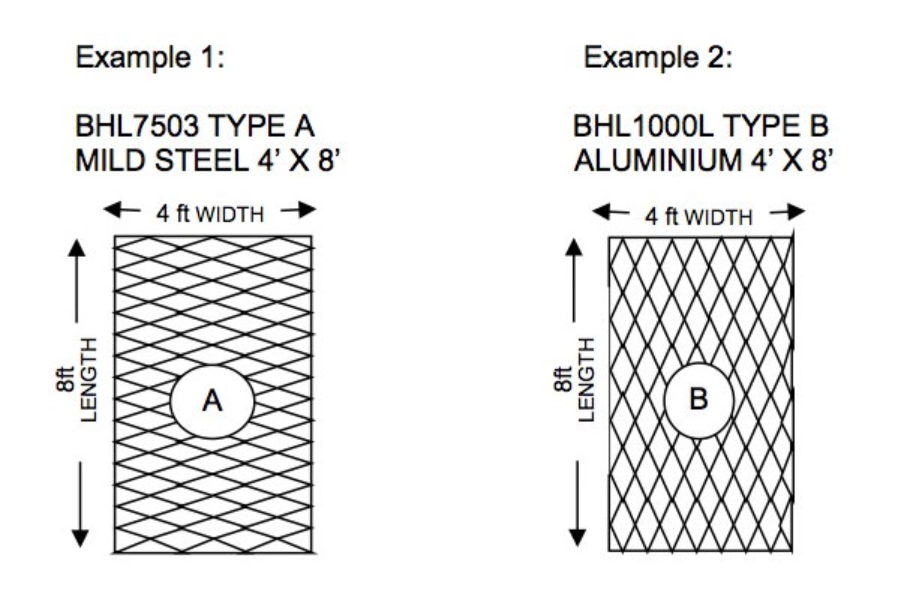

2. Orientation type ( TYPE A or TYPE B )
3. Type of Metal (Mild Steel, Galvanized, Aluminum, Stainless Steel)
4. Sheet dimension (4 x 8′, 5 x 10′ )
