Products Detail
Description
Model: i20s
FANVIL ISIP DOOR PHONE
The design of i20S IP Door phone are based on experience and knowledge of Fanvil IP phone development.i20S are using standard IP/RTP/RTSP protocol for voice transmission and enjoy the advantages of full range of compatibility.i20S have a variety of enterprise-level features and compatible with lots of major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc. The i20S IP door phone is designed for operation in indoor conditions. The robust mechanical construction offers protective coverage rating against dust and water (IP65). The i20S is economical devices with triple function(All in 1)- Access control by call, code and RFID card.
Key Features
Technical Specifications
Generic
Model: i20s
FANVIL ISIP DOOR PHONE
The design of i20S IP Door phone are based on experience and knowledge of Fanvil IP phone development.i20S are using standard IP/RTP/RTSP protocol for voice transmission and enjoy the advantages of full range of compatibility.i20S have a variety of enterprise-level features and compatible with lots of major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc. The i20S IP door phone is designed for operation in indoor conditions. The robust mechanical construction offers protective coverage rating against dust and water (IP65). The i20S is economical devices with triple function(All in 1)- Access control by call, code and RFID card.
Key Features

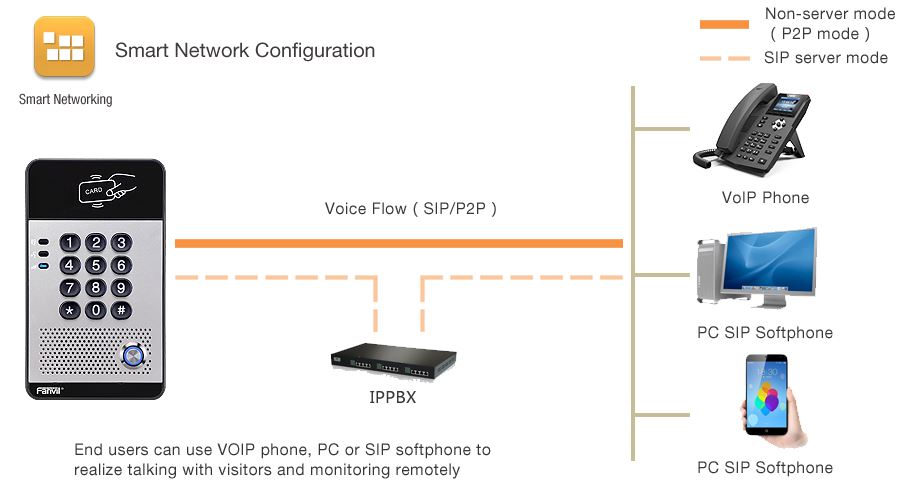

- Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS platform
- Access Control(by call, by code, IC/RFID)
- All-in-One(Access Control, Intercom and Broadcasting)
- Built-in 3W speaker and AEC, support high quality hand-free communication.
- Status indication icon
- System online maintenance and management
Technical Specifications
Generic
- 2 SIP Lines
- POE Enabled
- Full-duplex speakerphone (HF)
- Intelligent DSS Keys (Speed Dial)
- Wall-mounting
- Integrated RFID Card reader
- Integrated indoor switchgear
- Integrated one Relay
- External Power Supply
- All-in-One: Access Control, Intercom and Broadcasting
- Access control-by call, code, RFID card
- Industrial Standard Certifications: IP65, CE/FCC
- Intercom
- Speed Dial
- Auto-Answering (per line)
- Voice Message (on server)
- Local 3-way Conference
- Hot Line
- Open Door Log (200 thousand)
- Access Table (1000 entries)
- Support RFID Card issues (1000 entries)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Action URL / Active URI
- 802.3af PoE
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / PPTP / IPSec
- VLAN: 802.1p/q
- QoS: DSCP
- 1 DSS Key
- Numeric keypad
- WAN: 10/100BASE-Tx, Auto-MDIX£¬RJ-45 PoE: 802.3af(Class 3 - 6.49~12.95W)
- Passive Switch(short-circuit output): NC/NO Contacts, MAX 30V/1A AC/DC
- Active Switch output: 12V/700mA DC
- RFID/IC Card: EM4100 (125KHz),MIFARE ONE (13.56MHz)
- 1 Indoor door interface Main Chipset: Broadcom
- Speaker: 4Ω/3W Cables: CAT5 or better
- Power Supply: 12V/1A DC or PoE
- Shell material: Metal panel, ABS sump
- Protection level: IP65 Working Temperature: -10~60¡æ
- Storage Temperature: -40~70¡æ Working Humidity: 10~90%
- Device Weight: 300g Gross weight: 420g
- Device Dimension: 160 x 93 x 35mm
- Package size: 209 x 118 x 64mm
- CTN Size: 340 x 250 x 224mm (10 PCS)
