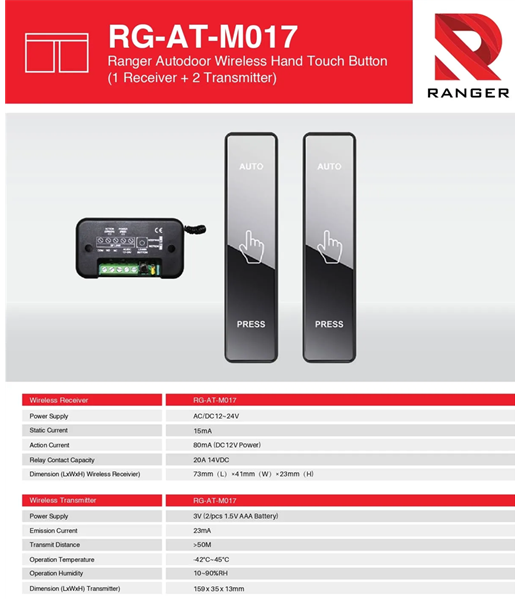

RANGER RG-AT-M017
Ranger Autodoor Wireless Hand Touch Button
( 1 Unit Receiver + 2 Unit Transmitter )
Wireless Receiver, 3V(2pcs 1.5V AAA battery), 23mA, Life of Battery,
219,000 times press, More than 25m transmit distance,
Dimension(LxWxH) : 123 x 50 x 32mm,
Wireless Transmitter : Power Supply : AC/DC12~24V,
Static Current : 15mA, Action Current : 80mA (DC12V Power),
Relay Contact Capacity : 20A 14VDC
|
Wireless Receiver |
|
|
Power Supply |
AC/DC12~24V |
|
Static Current |
15mA |
|
Action Current |
80mA (DC12V Power) |
|
Relay contact capacity |
20A 14VDC |
|
|
|
|
Wireless Transmitter |
|
|
Power Supply |
3V (2/pcs 1.5V AAA battery) |
|
Emission Current |
23mA |
|
Life of Battery |
> 219000times |
|
Transmit Distance |
>25M |
|
Operation Temperature |
-42°C ~ 45°C |
|
Operation Humidity |
10~90% RH |
|
Dimension ( LxWxH Transmitter ) |
159 x 35 x 13mm |
|
Dimension ( LxWxH Wireless Receiver ) |
123 x 50 x 32mm |
