MAG TTS730
DUAL LANE FULL HEIGHT TURNSTILE
- Full height (outdoor)
- Combine 2 lanes to save space
- Semi-auto arm rotation
- Best security medium traffic
- No crawling under or climbing over
TTS730 semi-auto dual full height turnstile is a type of pedestrian gate typically installed
at the entrance of a building with an access control reader to restrict unauthorized access.
The tall cage prevents the user from climbing over or crawling under to gain access without the supervision of the security guard.
TTS730 is the most secured type among all our pedestrian gates.
A robust and tough gate is important especially when you use it outdoor.
The intruder might attempt to exploit a security loophole or vandalize the gate to gain
unauthorized access when it is unattended by the guard. What if you can solve
all these concerns and still without the expensive cost of a European brand ?
2 in 1 to save space
You can save space with TTS730 compared to installing 2 separate TTS721 full height turnstile.
How to cheat a full height turnstile ?
By stopping the arm just before it is locked back after the first authorized person exited,
the intruder can reverse the rotation allowing himself to enter and pass through.
The worse news is that this loophole can be repeatedly used after single valid access
to allow UNLIMITED unauthorized entry since there is no guard at the site to stop it.

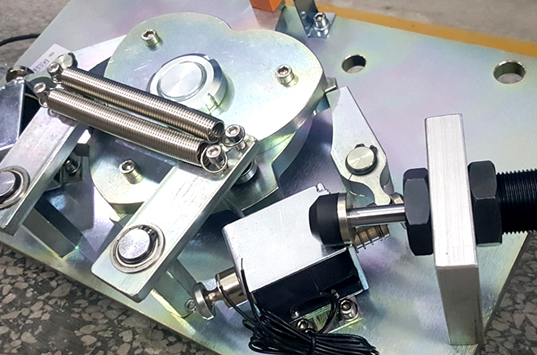

MAG SLAR (single-level anti-reverse) lock design can prevent this loophole in our full height turnstile.
Work harder and longer for you
The additional heavy-duty shock absorber in our design effectively reduces impact and vibration due
to rotational momentum during operation to cut down mechanical wear thus reducing your maintenance cost.
Stay secure while maintaining safety
You can manually unlock the turnstile during power failure to allow free arm rotation for a fast escape.

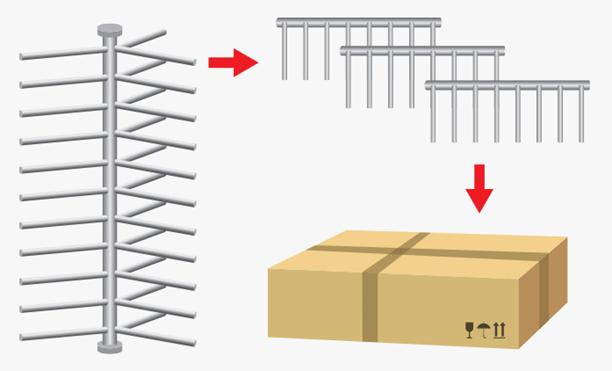

Lower cost transportation
The biggest dimension box is the tripod arm. Our arm is split into separate 3 pieces
to lower transportation cost. You can easily assemble it back at the site.

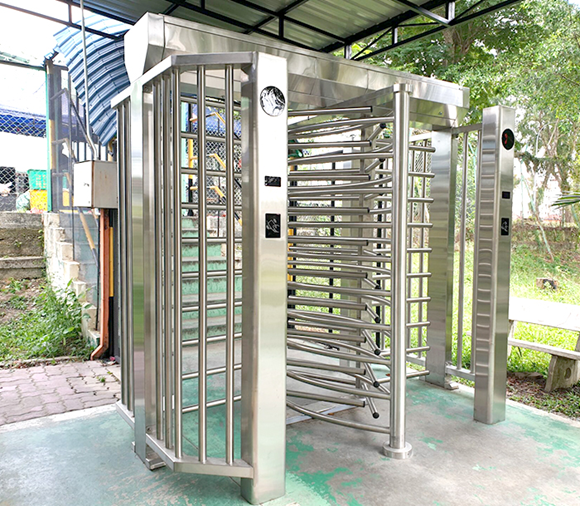

Site implementation:
|
Description |
Parameter |
|
Body Material
|
SS304 stainless steel
|
|
Dimension
|
2400mm(L) x 1580mm(W) x 2300mm (H)
|
|
Passage Width
|
580mm
|
|
Optimal flow rate
|
20 to 25 people per minuteeach lane
|
|
Arm Rotation Angle
|
120°
|
|
Power supply
|
AC220/110V±10%, 50/60Hz
|
|
Power Consumption
|
120W
|
|
Operating Voltage
|
24V DC
|
|
Working environment
|
Indoor and well-shaded outdoor application
|
|
Working Temperature
|
-25¡æ - 70¡æ
|
|
Relative Humidity
|
≤ 90%, non-condensing
|
|
Open Signal
|
Dry contact signal
|
|
Fire / Emergency Alarm
|
Unlock and free for passing
|
|
IP Rating
|
IP 52
|
|
MTBF
|
5 million cycles
|
