Threaded Studs Types
|

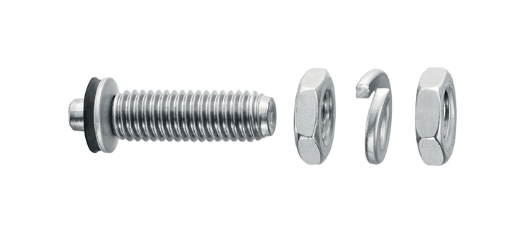

X-BT-MR Stainless Steel
|

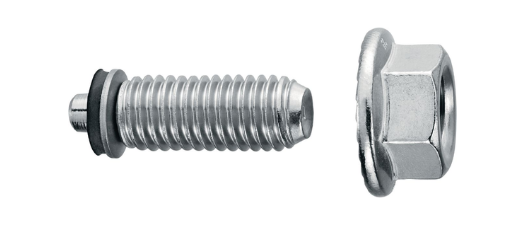

X-BT-GR Stainless Steel
|

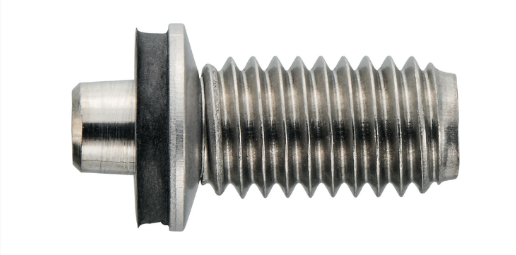

X-BT-ER Stainless Steel
|

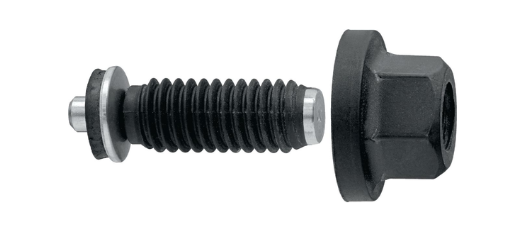

X-BT-MF Steel
|
|
|
.png)
|
.png)
|
.png)
|
.png)
|
|
Base materials
|
Steel, Stainless steel, Cast iron
|
Steel, Stainless steel, Cast iron
|
Steel, Stainless steel, Cast iron
|
Steel
|
|
Minimum thickness of base material (steel)
|
8 mm
|
|
Corrosion protection
|
Equivalent to A4 (316) stainless steel
|
Corrosion protection equivalent to A4(316)
|
Corrosion protection equivalent to A4(316)
|
Stainless steel A2
|
|
Environmental conditions
|
Outdoor, areas with heavy industrial pollution
|
Outdoor, areas with heavy industrial pollution
|
Outdoor, areas with heavy industrial pollution
|
Outdoor, areas with heavy industrial pollution, Coastal areas, Outdoor with moderate concentration of pollution, Outdoor with low pollution, Indoor with temporary condensation, Dry indoor, Outdoor temporary applications
|
|
Material
|
Duplex stainless steel (1.4462)
|
Duplex stainless steel (1.4462)
|
Duplex stainless steel (1.4462)
|
Carbon steel, Glass-fibre reinforced polyamide
|
|
Point type
|
Blunt tip
|
|
Approvals
|
ABS, BV, DNV, ICC ES, LR, UL
|
ABS, BV, DNV, LR, UL
|
ABS, BV, DNV, LR, UL
|
ICC ESR-2347
|
|
Product class
|
Ultimate
|
|
Thread diameter
|
-
|
8 mm
|
-
|
10 mm
|
|
Length
|
-
|
-
|
-
|
31 mm
|
|
Applications
|
-
Fastening cable trays, cable ladders, channels, struts, light-duty electrical installation (T-bars, instrumentation panels, junction boxes), fitting out and much more
-
Fastenings to fire-coated (PFP) beams
-
Fastening pipe supports to steel, cable tray supports to steel
-
Fastening handrails to steel
-
Fastening façade brackets to steel
|
-
Fastening gratings to steel structures using X-FCM-M or X-FCM-R grating discs and X-FCS grating elements
-
Fastening cable trays, channels, strut, light-duty electrical installation (T-bars, instrumentation panels, junction boxes), fitting out and much more
-
Fastening threaded rod to steel
-
Fastening to fire-coated (PFP) beams
-
Fastening checker plate with X-FCP-R grating discs
|
|
-
Fastening cable ladders using channels or hold-down/expansion guide clips
-
Fastening cable trays and cable runs using channels or conduit clips
-
Fastening junction boxes, switchgear and instrumentation panels directly or using channels
-
Fastening light fixtures, signage etc.
-
Fastening modular support systems to steel, base plates to steel, struts to steel
|
|
Advantages
|
-
No rework necessary on coated steel – corrosion protection remains intact
-
Versatile – suitable for use on most standard and high-strength construction steel
-
Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
-
Portable, cordless system – eliminates the need for long electric supply cords
-
Fast – ideal for fastening directly to coated or treated steel
|
-
No rework necessary on coated steel – corrosion protection remains intact
-
Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
-
Portable, cordless system – eliminates the need for long electric supply cords
-
Fast – ideal for fastening directly to coated or treated steel
-
Corrosion-resistant – suitable for marine, offshore and petrochemical applications, power plants, etc.
|
-
No rework necessary on coated steel – corrosion protection remains intact
-
Enhanced safety – allows electrical current to flow through the stud and then discharges it properly into the base material
-
Portable, cordless system – eliminates the need for long electric supply cords
-
Fast – ideal for fastening directly to coated or treated steel
-
Corrosion-resistant – suitable for marine, offshore and petrochemical applications, power plants, etc.
|
-
The X-BT-MF is easy and reliable to use – requires no electric supply cords or heavy equipment for installation
-
Suitable for use in mildly corrosive environments (C3)
-
Easy installation in tight spaces
-
Eliminates the need for refinishing work
-
Compatible with the Hilti MQ system
|
|
Pack Size
|
100 pcs / pack
|
